Evaluation Kit SKIT100-E41S Evaluation Kit with SMARC module TQMxE41S (Intel Atom x7000 series, "Alder Lake-N" & "Amston Lake")

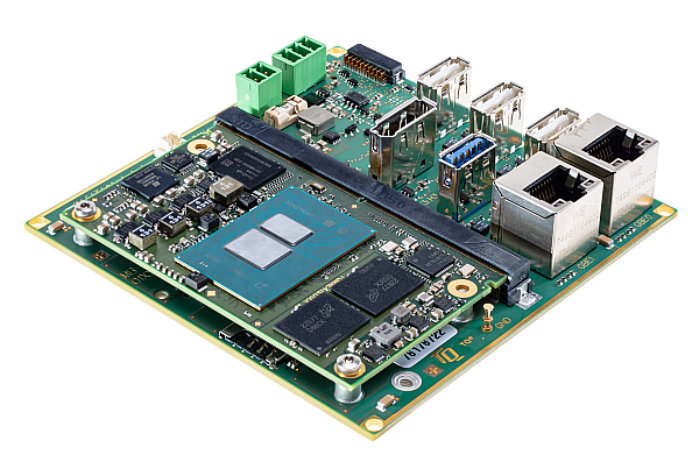

MB-SMARC-100100-1 (Type B) + TQMxE41S
Evaluation Kit SKIT100-E41S Evaluation Kit with SMARC module TQMxE41S (Intel Atom x7000 series, "Alder Lake-N" & "Amston Lake")
MB-SMARC-100100-1 (Type B) + TQMxE41S
- For evaluation with Intel Atom x7000E / x7000RE Processor Series, as well as Intel Processor N Series and Intel Core i3-N305 Processor
- Pre-assembled and ready-to-use incl. cooling
- Ultra compact at just 100 mm x 100 mm
- Slim design with direct connection of the module interfaces
- Expandable via several M.2 slots
- Ideally suited for proof-of-concepts in the IoT and robotic sectors
- Connector arrangement suitable for flat DIN rail mounting
The combination of the MB-SMARC-100100-1 carrier board and the TQMxE41S computer-on-module is ideal for evaluating Intel Atom x7000E/RE-based embedded solutions. The modular approach with SMARC 2.1 standard enables a quick start from the test system to the individual solution. The focus here is on two network interfaces as well as USB 3.2/2.0 and DisplayPort. The interfaces are arranged in such a way that, for example, flat mounting on DIN rail is possible.
Three M.2 slots for SSDs and wireless communication cards are available on the bottom side. Proof-of-concepts, for example in the IoT and Industry 4.0 sector, can be implemented quickly and easily.
RS-485 is available for connecting sensors. Individual IO/sensor expansion cards can be added via the expansion connector on the side, which customers can design themselves quickly and easily.
RS-485 is available for connecting sensors. Individual IO/sensor expansion cards can be added via the expansion connector on the side, which customers can design themselves quickly and easily.
CPU/Processor data
CPU/Processor:
- Intel® Processor N50 (2-Core, 1.0/3.4 GHz, 16 EU, 6 W TDP, PC-Client)
- Intel® Processor N97 (4-Core, 2.0/3.6 GHz, 24 EU, 12 W TDP, PC-Client)
- Intel® Processor N200 (4-Core, 1.0/3.7 GHz, 32 EU, 6 W TDP, PC-Client)
- Intel® Core™ i3-N305 (8-Core, 1.8/3.8 GHz, 32 EU, 15 W TDP, PC-Client)
- Intel Atom® x7211E (2-Core, 1.0/3.2 GHz, 16 EU, RT, 6 W TDP, Embedded)
- Intel Atom® x7213E (2-Core, 1.7/3.2 GHz, 16 EU, RT, 10 W TDP, Embedded)
- Intel Atom® x7425E (4-Core, 1.5/3.4 GHz, 24 EU, RT, 12 W TDP, Embedded)
- Intel Atom® x7211RE (2-Core, 1.0/3.2 GHz, 16 EU, RT, 6 W TDP, Industrial)
- Intel Atom® x7213RE (2-Core, 2.0/3.4 GHz, 16 EU, RT, 9 W TDP, Industrial)
- Intel Atom® x7433RE (4-Core, 1.5/3.4 GHz, 32 EU, RT, 9 W TDP, Industrial)
- Intel Atom® x7835RE (8-Core, 1.3/3.6 GHz, 32 EU, RT, 12 W TDP, Industrial)
Memory
M.2:
- M.2 Key-M 2230 NVMe (PCIe x1) SSD or M.2 Key-B SATA SSD
LPDDR5:
- 4, 8, 16, 32 GB, with In-Band-ECC option
eMMC:
- 16, 32, 64, 128, 256 GB Industrial iNAND
Graphics
Display:
- 1x DP++ (4K @ 60 Hz)
Communication interfaces
Serial Ports:
- 1x RS-485 (non-isolated)
Ethernet:
- 2x Gbit Ethernet
USB:
- 1x USB 3.2
- 3x USB 2.0
Other interfaces
M.2:
- 1x M.2 Key-B 3042/3052/2242 (SATA + USB 3)
- 1x M.2 Key-E 2230 (PCIe x1 + USB)
- 1x M.2 Key-M 2230 (PCIe x1)
Other functions
TPM:
- TPM 2.0 (option)
General data/basic data
Temperature range:
- Operating Temperature: -20°C...+50°C or 0°C...+50°C
Dimensions:
- 100 x 100 mm
Plug-in System:
- SMARC 2.1
Power supply:
- 12 V / Connector type: MCV 1,5/ 2-G-3,5
- Battery: CR2032 socket
OS-Support
OS Support:
- Windows 11 / Windows 11 IoT Enterprise
- Windows 10 / Windows 10 IoT Enterprise
- Linux
Download Subscription
With the free download subscription, registered users receive automatic e-mail notifications as soon as there are new downloads for this TQ product. How-to-guide
SKIT100-E41S-X7433RE-KKA-AA
With TQMxE41S-AI (Intel Atom x7433RE + 8 GB LPDDR5 + 32 GB eMMC, TPM 2.0), 256 GB M.2 SATA SSD, heatsink with fan
SKIT100-E41S-X7835RE-KKA-AA
With TQMxE41S-AH (Intel Atom x7835RE + 16 GB LPDDR5, TPM 2.0), 256 GB M.2 SATA SSD, heatsink with fan
SKIT100-E41S-X7211E-KKP-AA
With TQMxE41S-AG (Intel Atom x7211E + 4 GB LPDDR5 + 32 GB eMMC, TPM 2.0), 256 GB M.2 SATA SSD, heatsink
SKIT100-E41S-X7425E-KKA-AA
With TQMxE41S-AE (Intel Atom x7425E + 8 GB LPDDR5 + 32 GB eMMC, TPM 2.0), 256 B M.2 SATA SSD, heatsink with fan
SKIT100-E41S-N50-KKP-AA
With TQMxE41S-AD (Intel Processor N50 + 4 GB LPDDR5 + 32 GB eMMC, TPM 2.0), 256 GB M.2 SATA SSD, heatsink
SKIT100-E41S-N97-KKA-AA
With TQMxE41S-AC (Intel Processor N97 + 8 GB LPDDR5 + 128 GB eMMC, TPM 2.0), 256 GB M.2 SATA SSD, heatsink with fan
Others
on request
