Embedded Starterkit STKa95xxSA SMARC Evaluationkit based on TQMa95xxSA
Arm® Cortex® A55 based on i.MX 95

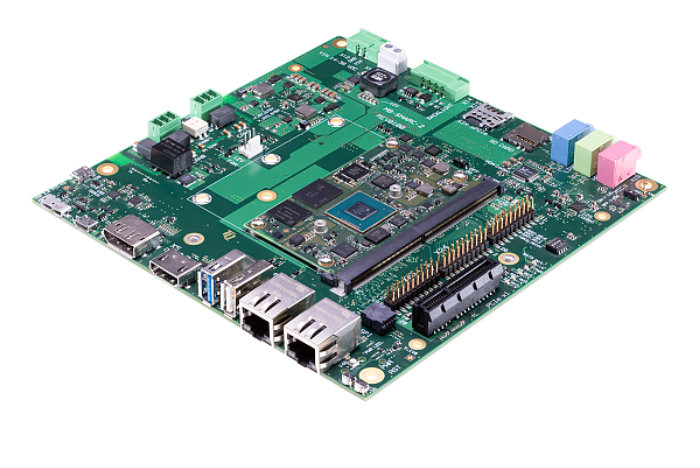

Embedded Starterkit STKa95xxSA SMARC Evaluationkit based on TQMa95xxSA
Arm® Cortex® A55 based on i.MX 95
- Machine Learning Accelerator 2 TOPS
- Integrated Cortex® M33 and M7
- High-speed communication via 1x 10 Gbit and 2x Gbit Ethernet (1x TSN), 2x PCIe and 1x USB 3.0 interface
- MIPI CSI with ISP support
- Low power consumption (typ. 6 W)
- Integrated security functions
Evaluation kit based on the SMARC minimodule TQMa95xxSA, which is based on the i.MX 95 processor an Arm® Cortex®-A55 from NXP. The integrated graphics controller with GPU and hardware acceleration for video encoding and decoding supports applications with high requirements for displaying complex graphics.The starter kit has several interfaces that allow an uncomplicated implementation of various applications.
Download Subscription
With the free download subscription, registered users receive automatic e-mail notifications as soon as there are new downloads for this TQ product. How-to-guide
STKa95xxSA-AA
STKa95xxSA (Eval Kit) with TQMa9596SA-AA, Hexal Cortex A55 with NPU/1,8 GHz 4 GB LPDDR5, 16 GB eMMC Flash, 64 kB EEPROM, RTC, 1x USB 3.0 Host, 1x USB 2.0 Host, 2x ETH 10/100/1000, 2x CAN FD, 1x DP, 1x LVDS, 2x MIPI CSI, 1x Mini PCIe + SIM Card, 1x PCIe x1, Audio, Temperature sensor, Reset-Button, SD Card interface, Power Supply, 8 GB SD card, Cables
