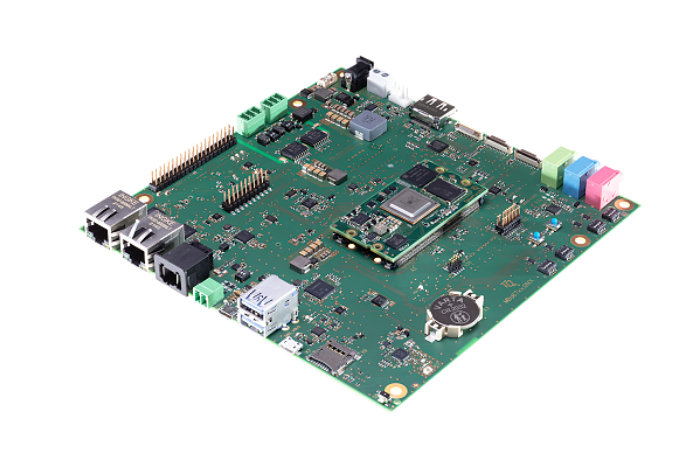

Embedded Starterkit STKa67xx Evaluation kit based on TQMa67xx(L)
Embedded Cortex®-A53 module based on TI AM67xx with AI, Vision ISP and 3D GPU for applications with enhanced computing & scalable graphics performanc & scalable graphics performance.
Embedded Starterkit STKa67xx Evaluation kit based on TQMa67xx(L)
Embedded Cortex®-A53 module based on TI AM67xx with AI, Vision ISP and 3D GPU for applications with enhanced computing & scalable graphics performanc & scalable graphics performance.
- 2x GBit Ethernet
- 1x Single Pair Ethernet (1000 Base-T1)
- 3x Display via LVDS, DP oder FPC
- 4x CSI camera (2x FPC & 1x MIPI CSI (dual))
- 2x USB3.0, 2x CAN-FD, RS485, 1x MPCIe
- WIFI + BT, 1x SIM Card, SD Card
- Low power dissipation (typ. 3-5W)
The evaluation kit STKa67xx based on the embedded module TQMa67xx and TQMa67xxL offers the latest processor family AM67xx (Quad /Dual Cortex A53 with up to 1.4GHz) from Texas Instruments. Whether connector or LGA module, both modules can be put into operation on the MBa67xx and their software development can be started. The modules are ideal for applications that require extended computing power and scalable graphics performance. Optional features such as AI, Vision ISP and a 3D GPU allow maximum flexibility for your application.
The AM67x CPUs offer a variety of industrial interfaces, which are provided on the MBa67xx. These include 2x Gigabit Ethernet 1x Single Pair Ethernet 1000 Base-T1. In addition, the MBa67xx has various interfaces such as 1x LVDS, 1x Displayport, 1x DSI via FPC, 4x CSI camera (2xFPC 1x Dual MIPI CSI), 2x USB3.0, 2x CAN-FD, UART and MPCIe and much more. This makes the STKa67xx the ideal basis for your software development.
STKa67xx(L)
STKa67xx(L) (Eval Kit) with TQMa67xx / TQMa67xxL + Adapter, Quad Cortex®- A53 / 1,4GHz, Cortex®-R5F/800 MHz, 8GB eMMC, 2GB SDRAM, 64 kB EEPROM, RTC, 1x LVDS, 1x DP, 1x DSI, 4x CSI Kamera 2x CSI via FPC, 1x MIPI-CSI Dual, Audio, 1x USB 2.0 OTG, 2x USB 3.0, 1x USB debug, 2x ETH 10/100/1000, 1x SPE (1000 Base-T1) 2x CAN FD, 1x RS485, 1x Temperature sensor, GPIOs, WIFI/ BT, Mobile Network, Reset-Button, SD Card interface, Power Supply, 4 GB SD card, Cables
